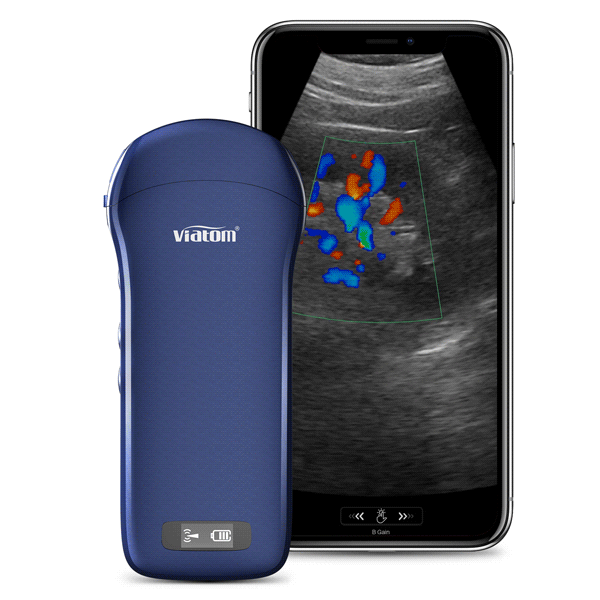

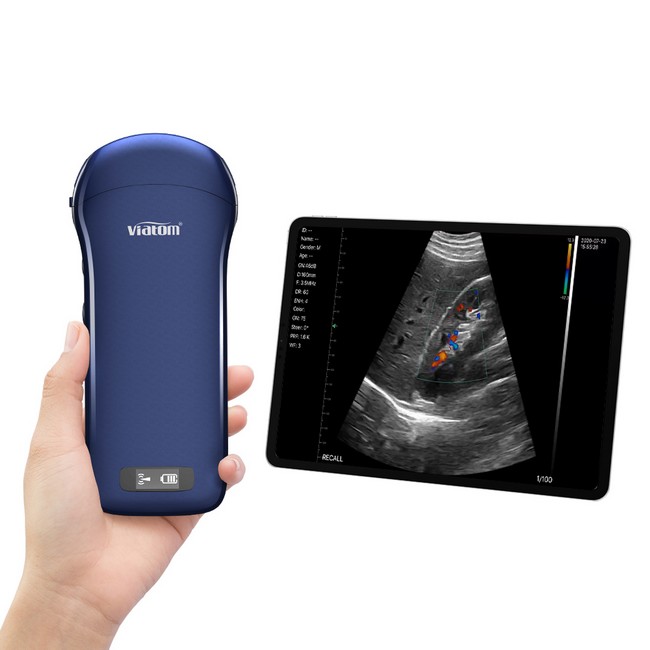

NEW !!! - Viatom C10 - Portable wireless ultrasound device for iOS/Android

The Viatom C10 is an innovative mobile ultrasound device that combines flexibility and performance in a compact design. With a scan head capable of both linear and convex & cardiac scans, it covers a wide range of applications, making it ideal for emergency medicine professionals or for ultrasound-guided injection treatments. Ease of use is ensured by a free, intuitive app available for both iOS and Android devices, making the ultrasound device an open system that can be seamlessly integrated into existing workflows. DICOM compatibility ensures that the device can easily communicate with other medical imaging systems, which is essential for efficient patient care. The Viatom C10's wireless technology offers ultimate freedom of movement, while its light weight of just 227g and compact size make it easy to transport. Despite its small dimensions, the device offers high-resolution image quality with 128 elements, which supports precise diagnostics. Manufactured by Viatom and Konted, the Viatom C10 is synonymous with quality and reliability, making it an essential tool for healthcare professionals on the move or working in space-constrained environments.

Clearer Viewing Anytime, Anywhere
Viatom transforms traditional, cart-based ultrasound into a portable, mobile phone-sized scanning device that can obtain high-quality images even in the face of challenging cases. C10 Wireless Pocket Ultrasound can transmit Wi-Fi signal by itself, realize real-time transmission of images without delay and freeze, no need to rely on the external network environment.

Comparable to Large Benchtop Ultrasound
In order to ensure the wireless imaging quality and speed, C10 replaces the fragile piezoelectric crystals used in traditional systems with an electronic linear array, and also uses 32-bit physical channels to receive signals. Viatom also adopts 128 probe array elements which are only used in large ultrasound equipment to improve the image resolution.

Multimodal Imaging
C10 has five imaging modes, B MODE, M MODE, Color MODE, PW MODE, PDI MODE. Ultra-wide frequency 2.5/3.5/5/7.5/10Mhz, scanning depth covers 20-305mm. The software operation interface of C10 is clear, and image parameters can be adjusted through multi-touch interface. Such as depth (20-308mm), gain (0-100), dynamic range (40-110, step size of 5), focal position (0-3), RPF(1.25K-4K), wall filter (0-15), etc

Experience Infinite Scenes of Pocket Ultrasound
As a supplement to large ultrasound equipment, C10 also can improve the accessibility of medical services, not limited to the imaging department of hospitals, but can be applied to clinical diagnosis, primary medical institutions, emergency care and other practices.

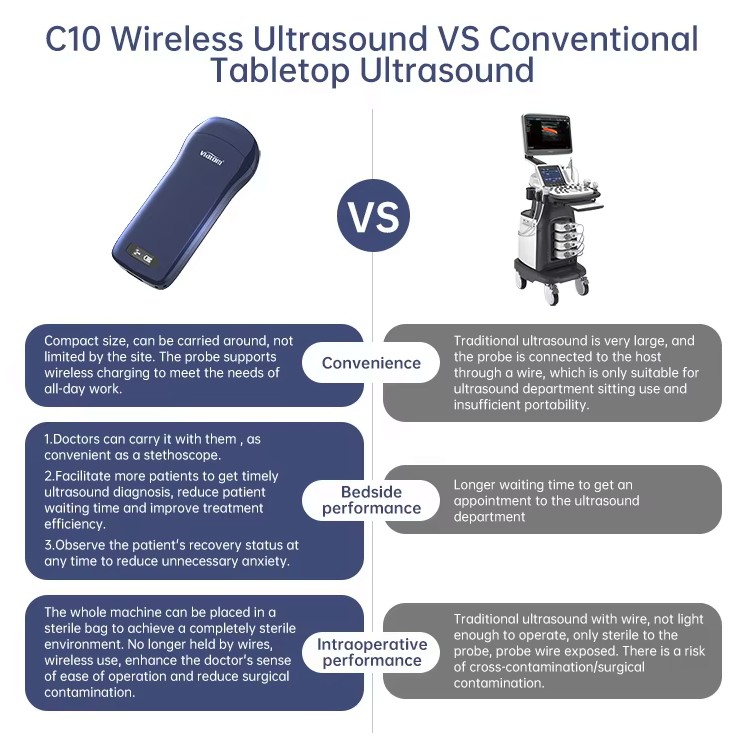

Compared with traditional large-scale ultrasound, our wireless pocket ultrasound solves the problems of the traditional color ultrasound, which are limited in clinical scenarios, not easy to carry, inconvenient to use due to dragging wires, and the aseptic operation of ultrasound intervention.
Physicians can use our wireless pocket ultrasound to break through the physical space interval, shorten the first aid time for critical patients, improve the treatment effect, so that patients can enjoy safer, high-quality and efficient medical services.

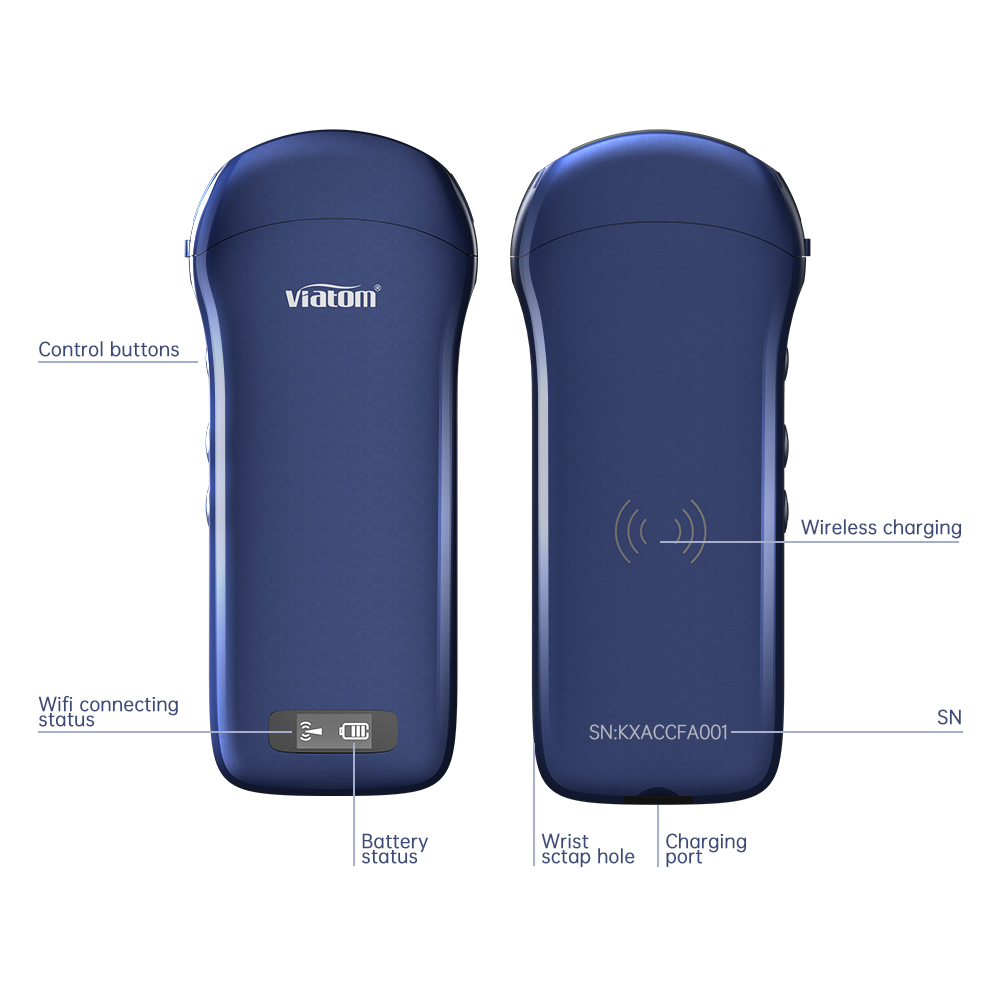

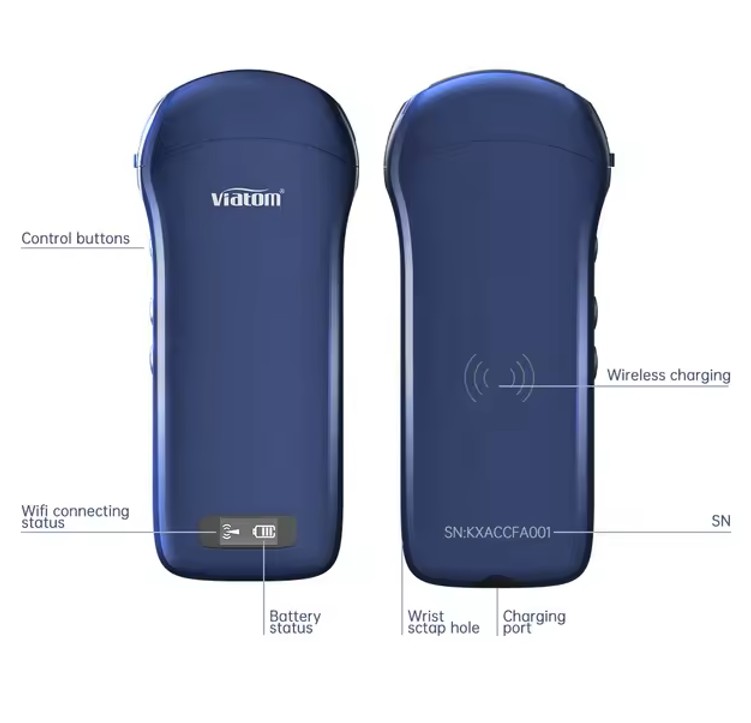

Product features:

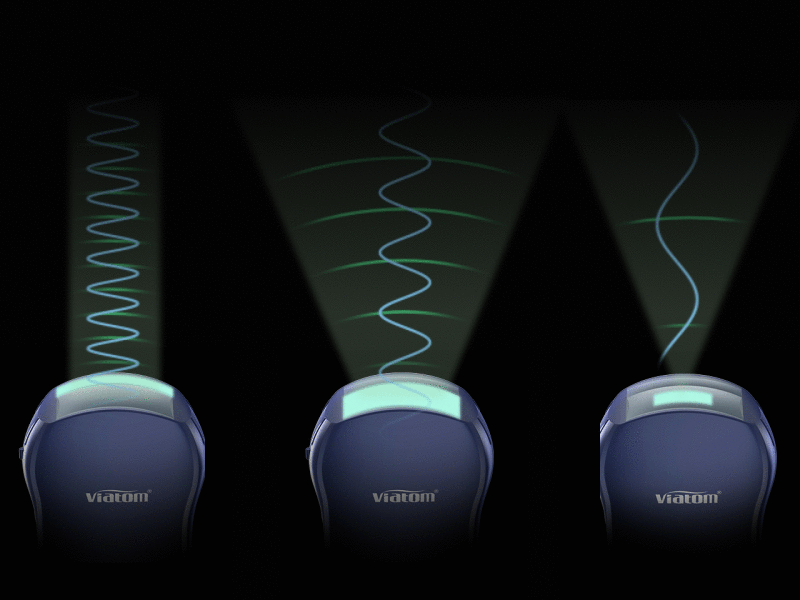

- Innovative linear/convex/cardiac scan head for a wide range of applications
- high resolution / 128 piezo elements
- mobile (wireless) and extremely light (227gr)
- Open system (MyUSG app for iOS/Android) / DICOM compatible

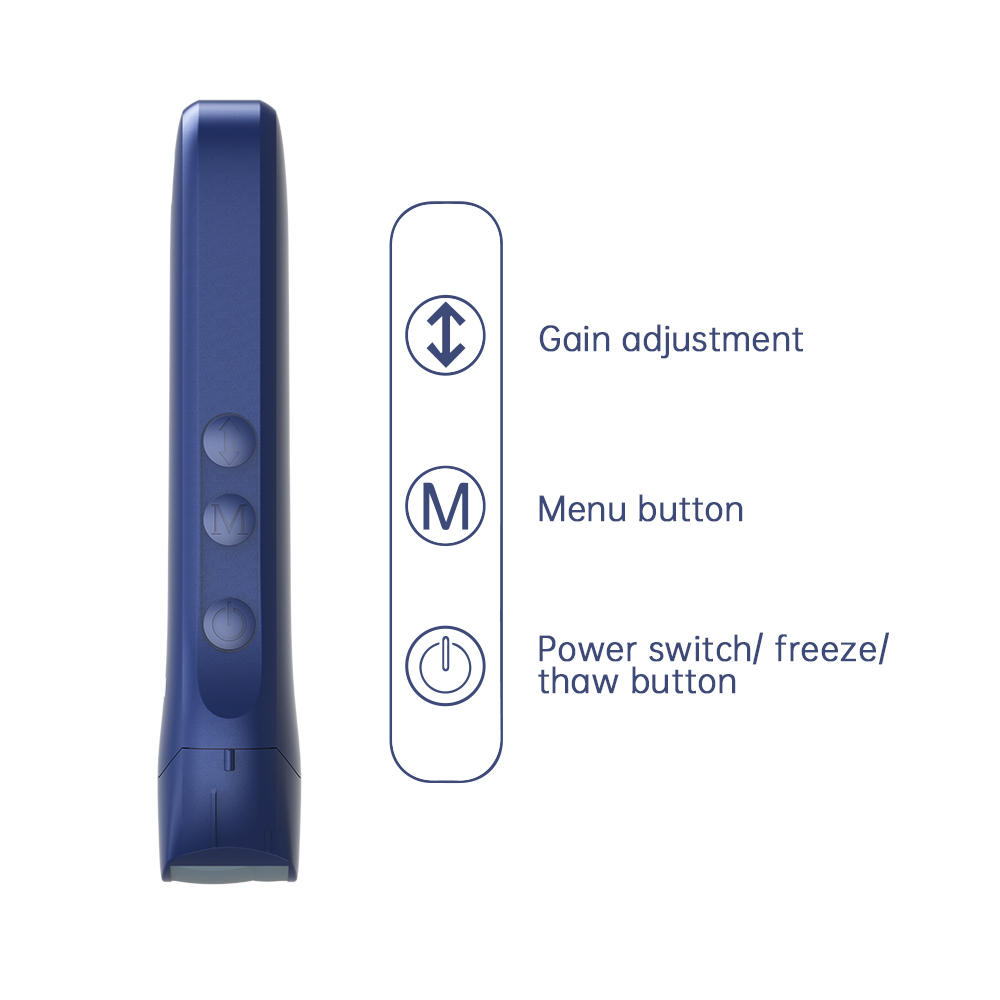

- Minimized number of buttons and intuitively controllable touchscreen user interface (app)
- Easily accessible presets
- Purchase model - no additional running costs!
- OPTIONALLY available: Premium version incl. Apple iPAD (64GB) + ready to use/install

Technical specifications:

Modeltyp: Konded C10
Manufacture:  Beijing Konted Medical Technology Co., Ltd.
Size: 156mm x 60mm x 20mm (6.1'' x 2.4'' x 0.8'')
Weight: 227g (0.6 lbs)
Battery capacity: 3 ~ 5 hours
Protection class: IP67 waterproof
Compatible with common disinfectants
Charging station: wireless
Charging time: fully charged within 2 hours

Clinical applications:
Linear: vascular, MSK, pediatrics, breast, thyroid, carotid, small organs, nerves
Convex: abdomen, cardiac, gynecology, obstetrics, urology, kidney, lung

Image/Display:
Measure:  Length, area, angle, heart rate, obstetrics
Format: jpg, avi, and DICOM
Frame rate: 18 frames/second
Image adjustment: BGain, TGC, DYN, focus, depth, harmonics, noise reduction

Probe:
Probe Frequency: Convex head: 3.5MHz/5MHz
                               Linear head: 7.5MHz/10MHz

Probe element (128):
Scan Depth: Convex head: 90/160/220/305mm
                   Linear head: 20/40/60/100mm
Head width: Convex head: 45mm
                      Linear head: 40mm

Settings:
Scanning mode: Electronic array
Display mode: B, B/M
Color Doppler Version: B+Color, B+PDI, B+PW

Compatibility:
iOS 9.0 or later / iPhone: 4S, 5, 5C, 5S, 6, 6 Plus, 7, 7 Plus, 8, 8 Plus, X, XR, XS, XS Max, SE (2nd generation), 11, 11 Pro, 11 Pro Max, 12 Mini, 12, 12 Pro, 12 Pro Max.
Ipad: Air 2, Air (3rd generation), Air (4th generation), ipad Pro series, ipad mini (5th generation), ipad (8th generation).
Android 10 or later (the latest models of Android devices may not be supported.

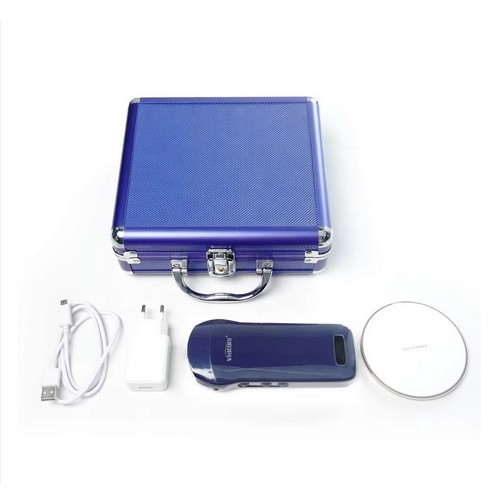

Scope of delivery:

- Viatom Ultrasound C10
- Internal Battery
- App "MyUSG" available for free in AppStore/Google PlayStore
- Quick User Guide
- Micro USB cable
- Wireless Charger
