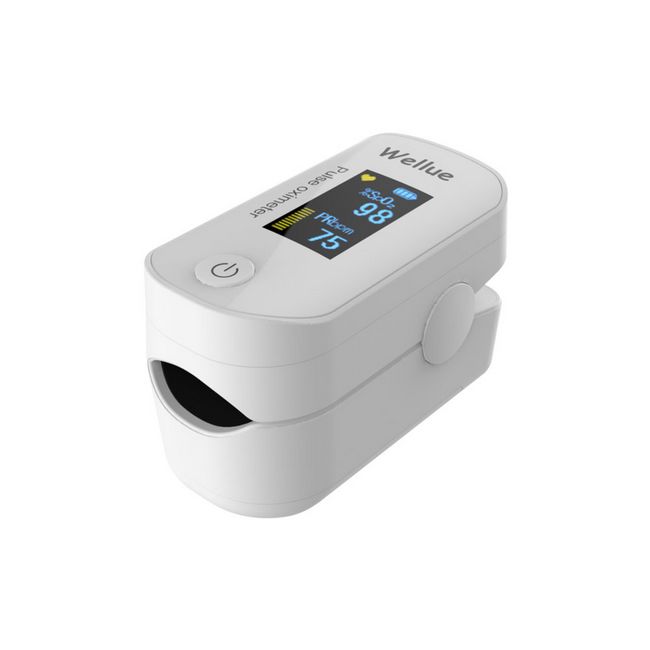

Pulse Oximeter Viatom Wellue FS20F / OLED Pulse Oximeter - Bluetooth version

The pulse oximeter measures simply & uncomplicatedly, simultaneously the arterial oxygen saturation and heart rate. Ideal in the private sector, hospital area, for rescue services, allergy sufferers or even athletes (after competitive sports).  Especially suitable for people with heart failure, chronic obstructive pulmonary disease, bronchial asthma or for sports at high altitudes. The pulse and oxygen meter is easily operated by a button.

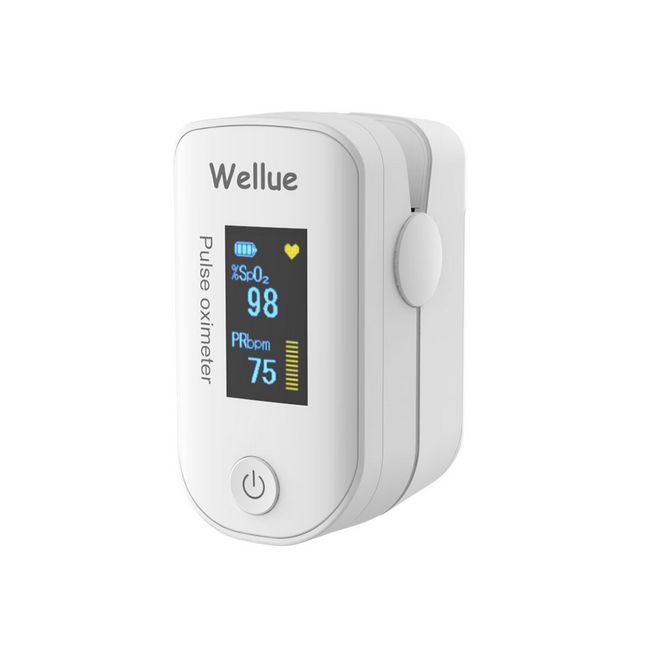

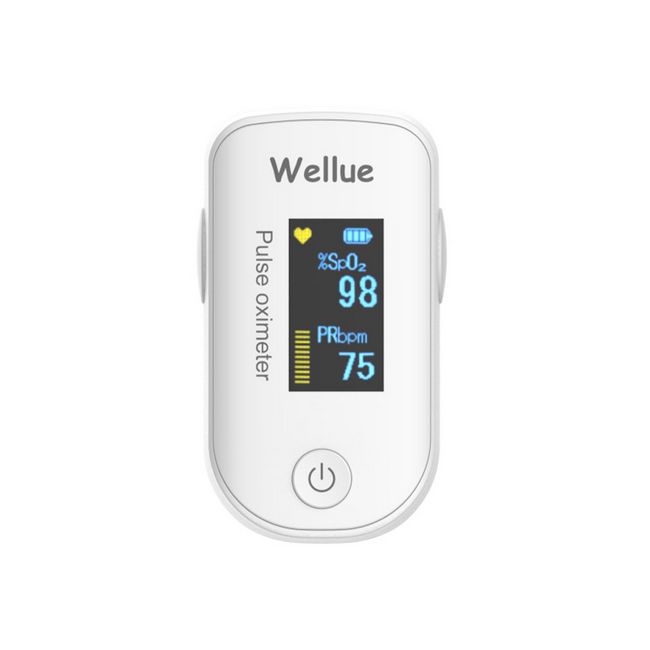

The display of the Pulse Oximeter SP02% gives a statement about the current blood oxygen saturation in percent, the display PR bpm shows the heart rate in heart beats per minute. In addition, a corresponding SP02% wave is displayed below the values, the signal strength of the heart rate is shown as a histogram bar on the side.

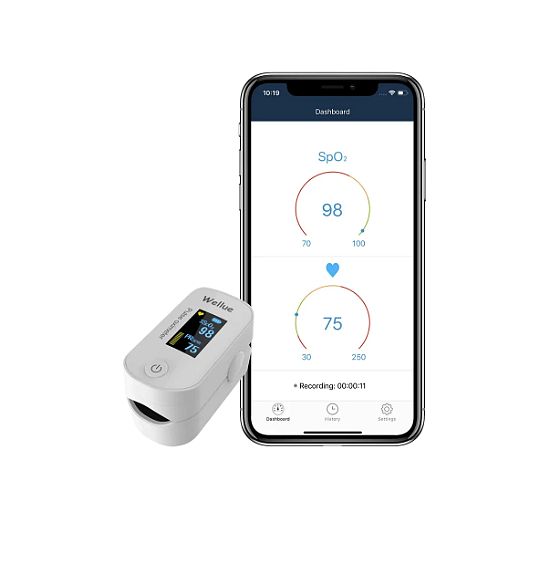

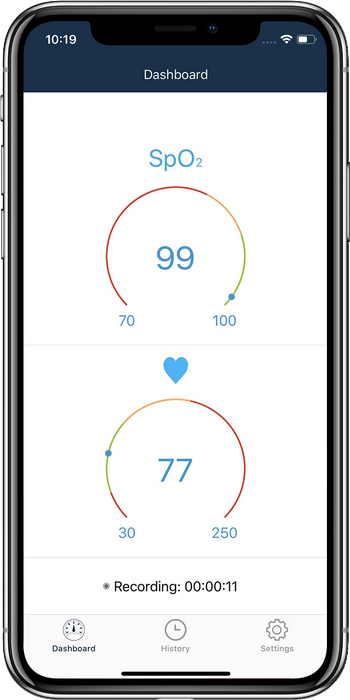

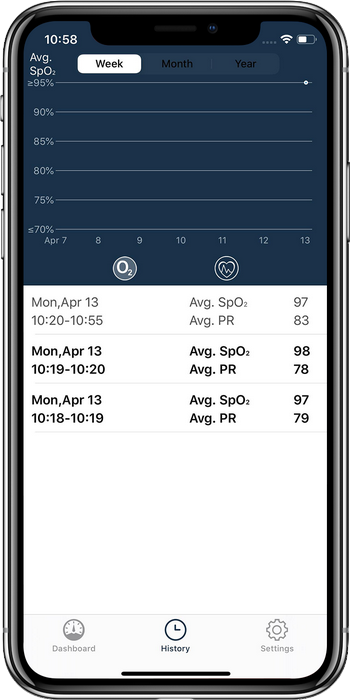

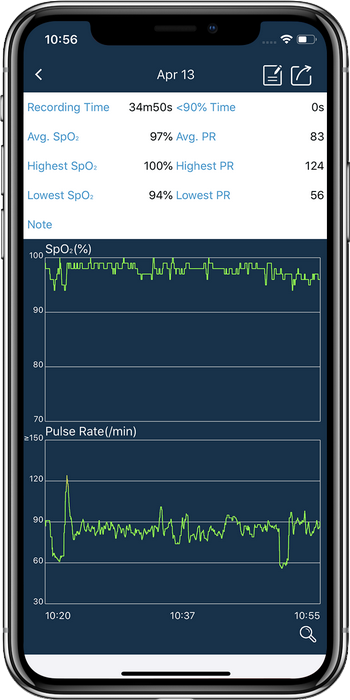

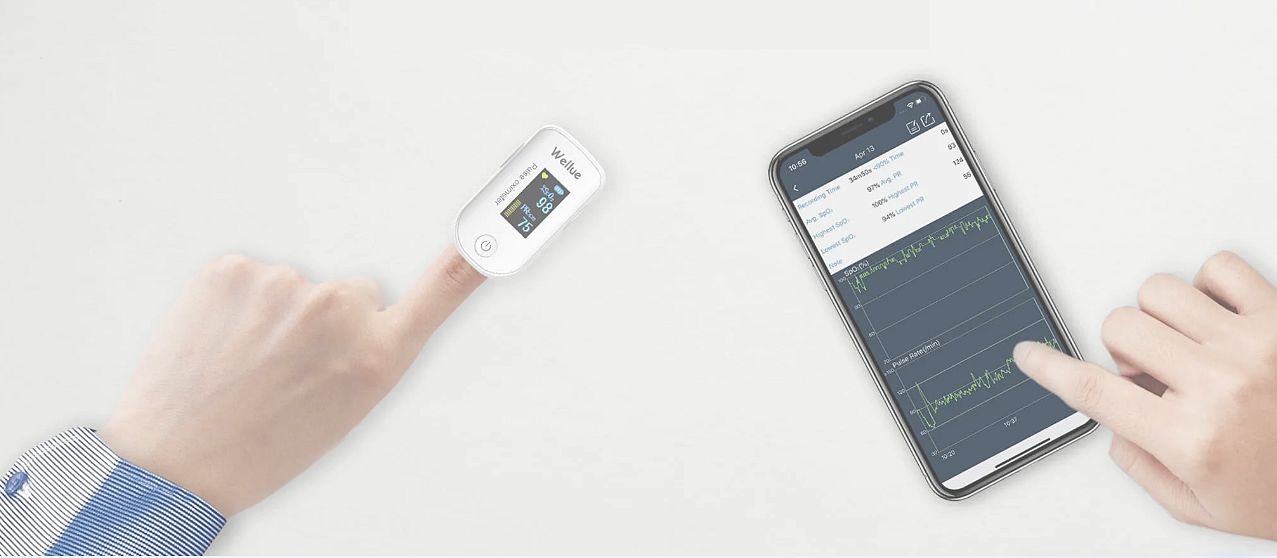

Further history data can be viewed in the mobile APP ViHealth" (iOS & Android), at. The app also allows a more comfortable pulse rate analysis and data recording.

Features:

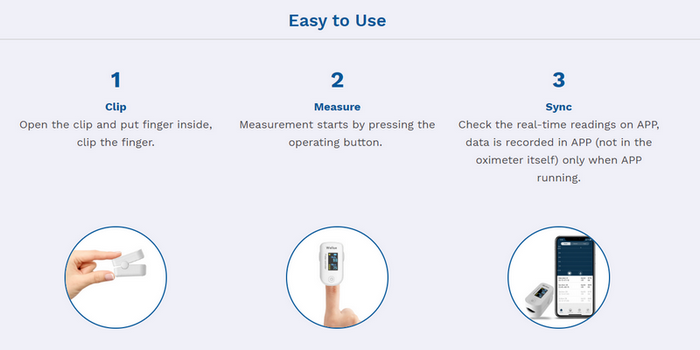

- easy to use
- small and light (total weight with battery only 60g)
- OLED display of SpO2, PR, pulse and waveform
- splash-proof and shockproof housing
- Sampling or continuous measurement mode
- Audible and visual alarm with low battery indicator
- Automatic switch-off if no signal is detected

 Technical data:

- Display: OLED (0.96"), resolution 128*64 pixel (4 direction display)
- Pulse ox is up:
       Measuring range 70- 99%
       accuracy: +/-2% between 70-100
- Pulse rate:
       Measuring range: 30 -240 BPM
       Accuracy: +/- 2 BMP or measured value +/- 2%.
       Pulse strength: Histogram
- Alarm limits:
      SpO2 below 88%.
      Pulse below 50 bpm and above 120 bpm
- Power supply:
       2 x AAA alkaline battery 1.5 V
       consumption: less than 40mA
       Operating time: ~ 30 hours
- Other: US-FDA Lisiting, CE

- Manufacturer: Viatom Technology
- Bluetooth: yes, version 4.0 - App "ViHealth
- Dimensions/Weight
      length: 5,79mm
      width: 3.00 mm
      height: 3,60 mm
      Weight: 60g (including batteries)

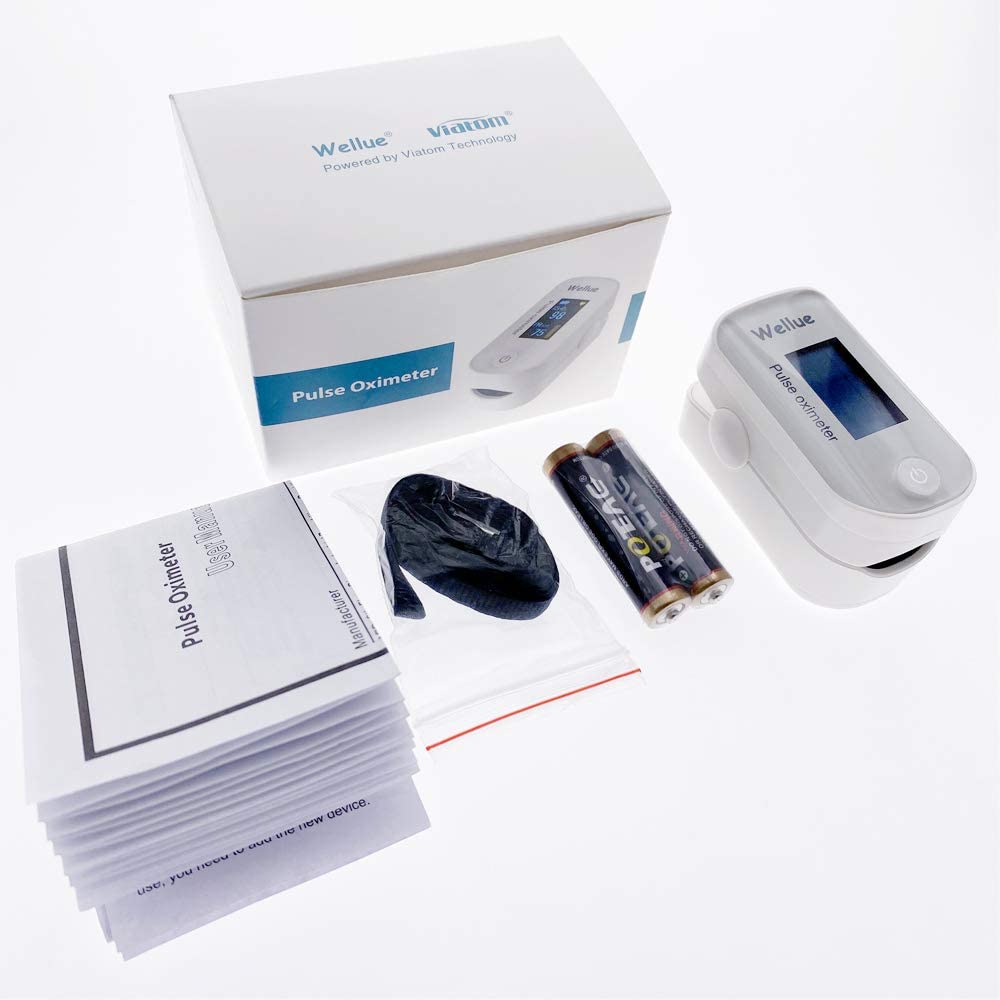

Scope of delivery:
- Pulse Oximeter BT FS20F
- 2x AAA battery
- retaining strap
- Instruction manual englisch

Note: The pulse oximeter plays a supporting role in the diagnosis of patients. It does not replace any medical diagnosis. Bright light sources around the sensor can falsify the measurement result. Low blood pressure, low contractility index, anemia, shock or low body temperature lead to measurement errors.
