CheckMe DuoEK-S – Portable ECG Device with OLED Display and Real-Time App Analysis

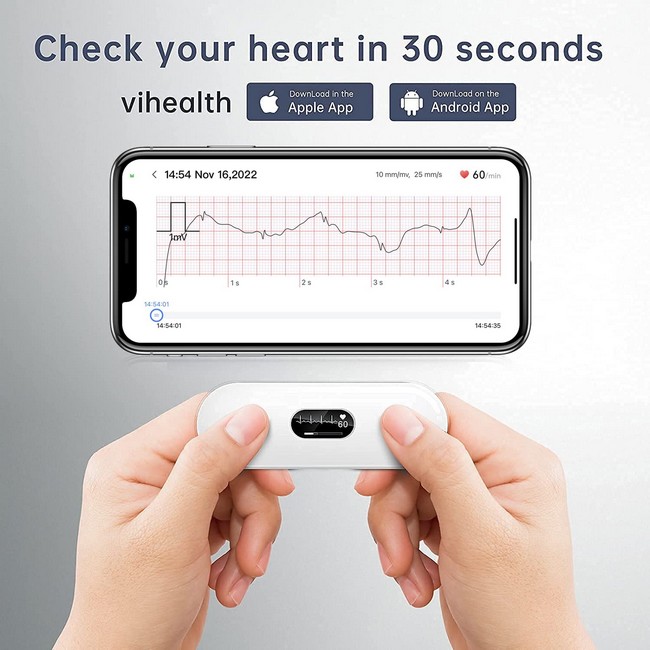

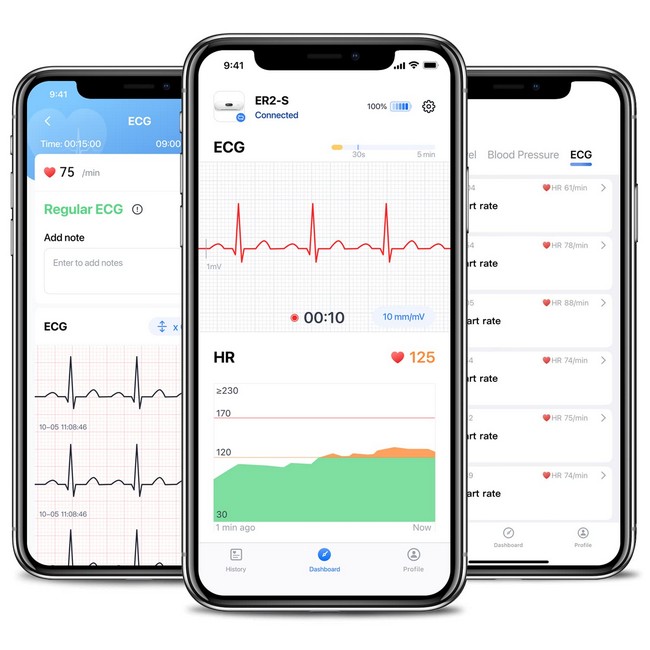

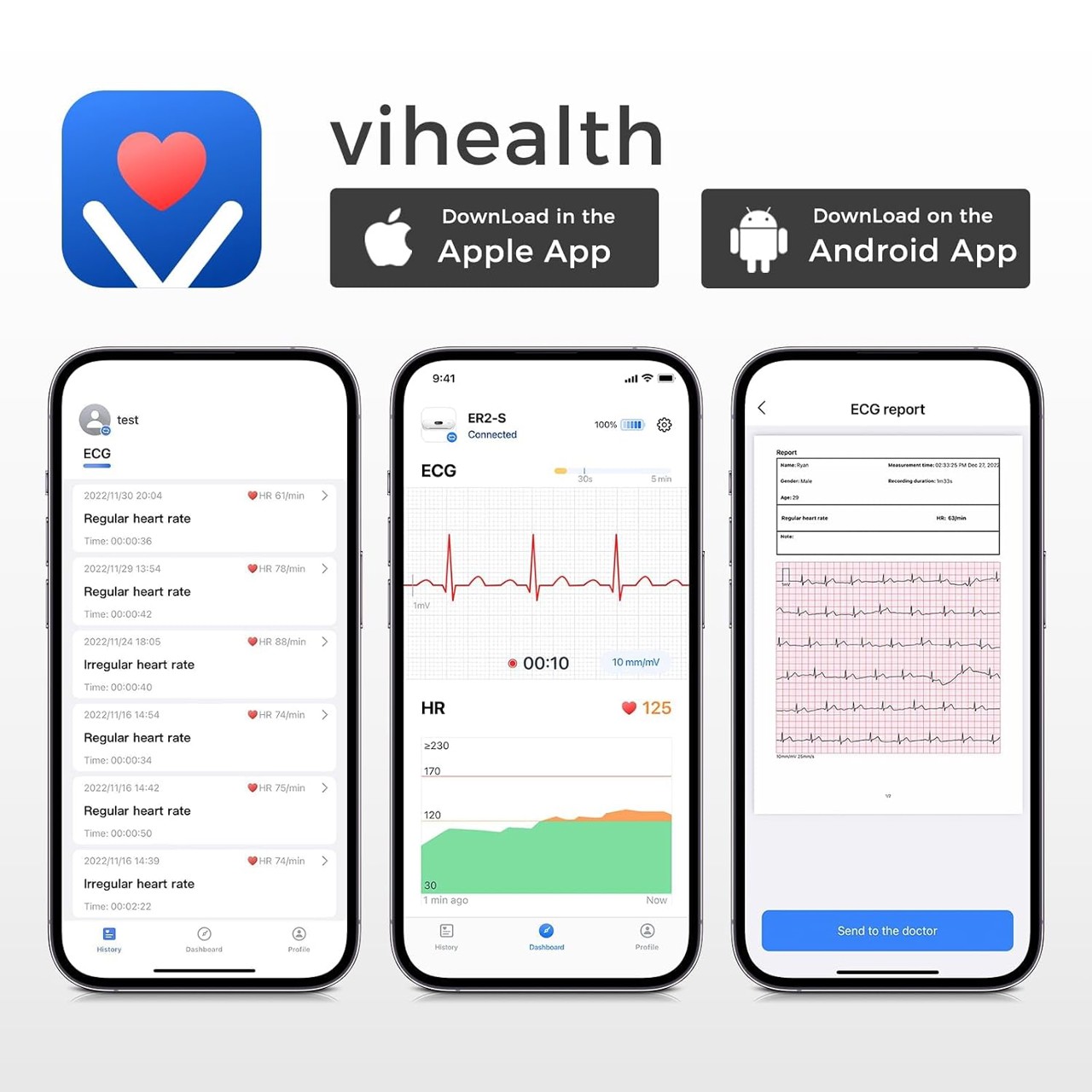

For anyone who wants to keep a regular eye on their heart without having to make a doctor’s appointment every time, the CheckMe DuoEK-S from Viatom is a compact and practical tool for everyday use. This portable ECG device is designed for self-monitoring by people with known heart conditions or an increased risk of heart disease and provides a medical-grade ECG within seconds—either directly on the built-in 0.96-inch OLED display or via Bluetooth in the free ViHealth app. There, an AI-powered analysis system evaluates the reading and can detect up to 17 different ECG events, ranging from sinus rhythm abnormalities and atrial fibrillation to cardiac arrhythmias such as tachycardia or bradycardia. The results can be stored indefinitely in the app and easily shared with the treating physician as needed.

Product features:

- Medical ECG in seconds: Measurement duration can be flexibly selected from 30 seconds to 5 minutes
- Can be used with or without a smartphone—up to 10 measurements can also be saved offline on the device

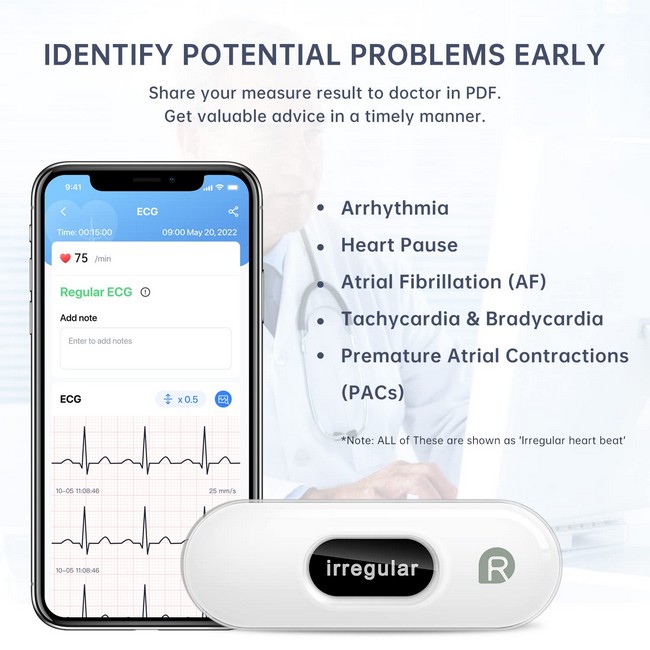

- AI ECG analysis via the ViHealth app detects up to 17 types of cardiac arrhythmias, including atrial fibrillation, atrial flutter, tachycardia, bradycardia, and
    premature contractions (PAC/PVC)

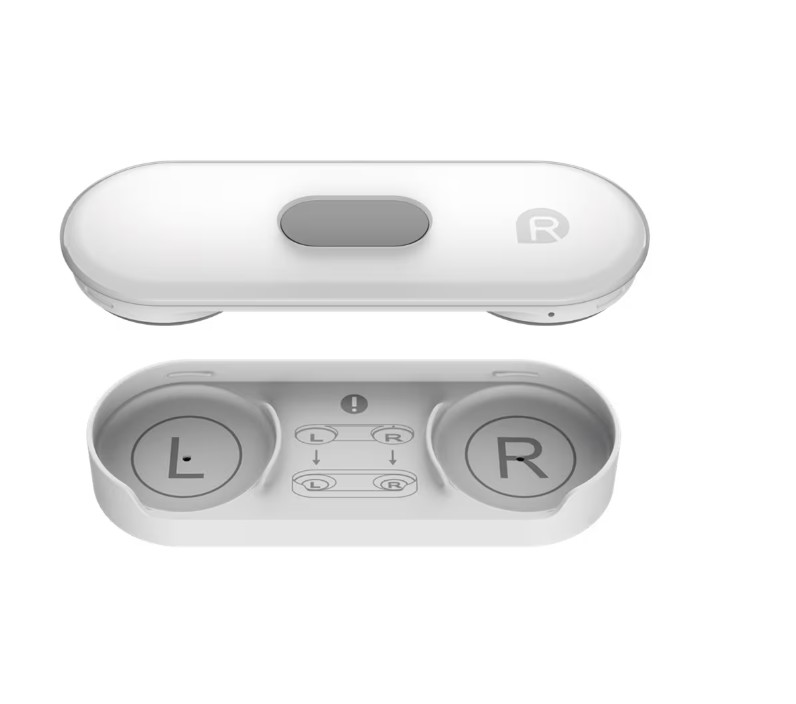

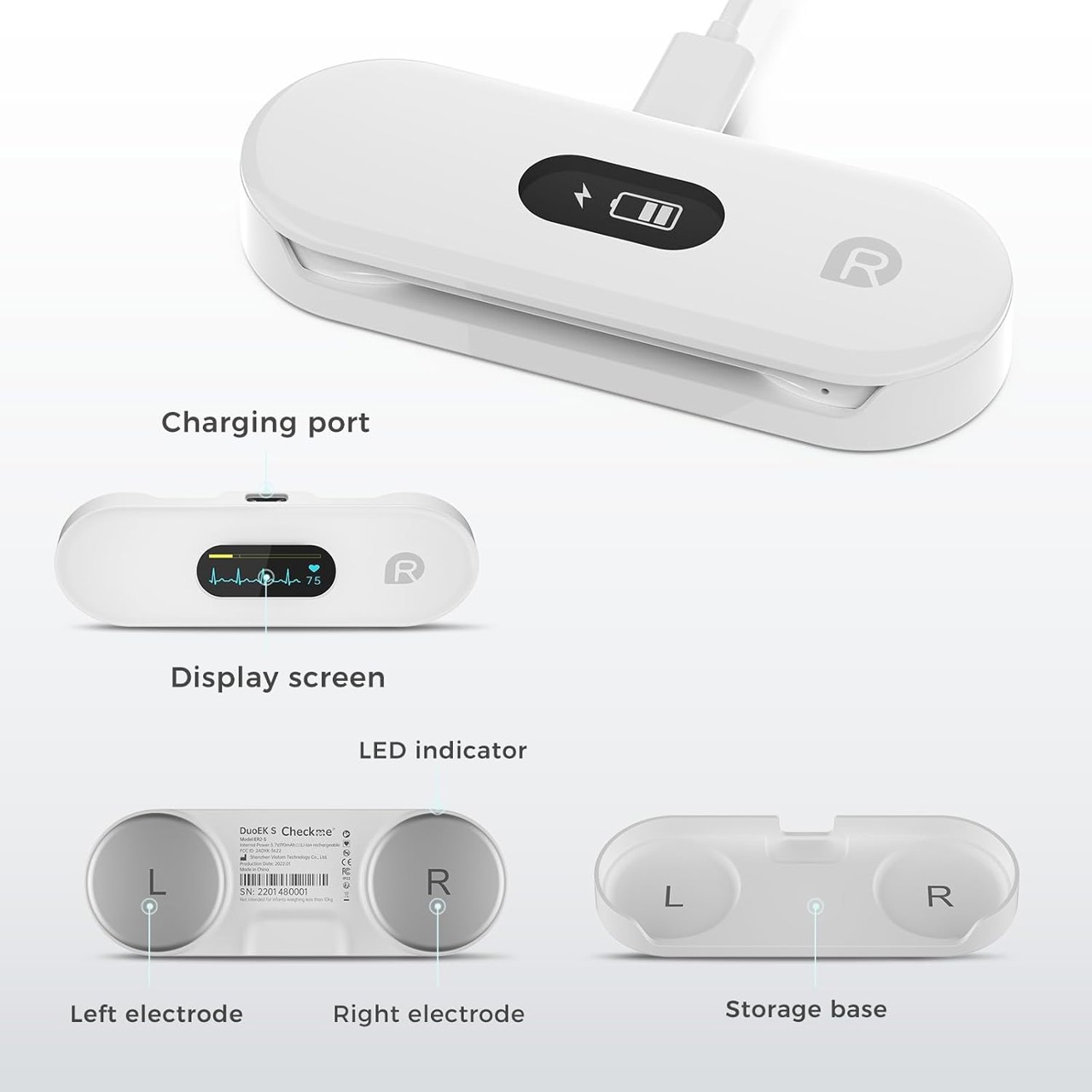

- 2 channels and 2 electrodes for measurements using Lead I (hands) or Lead II (hand and chest/leg)
- No cables, gel, or electrode pads required—simply place your finger on the device to take a measurement

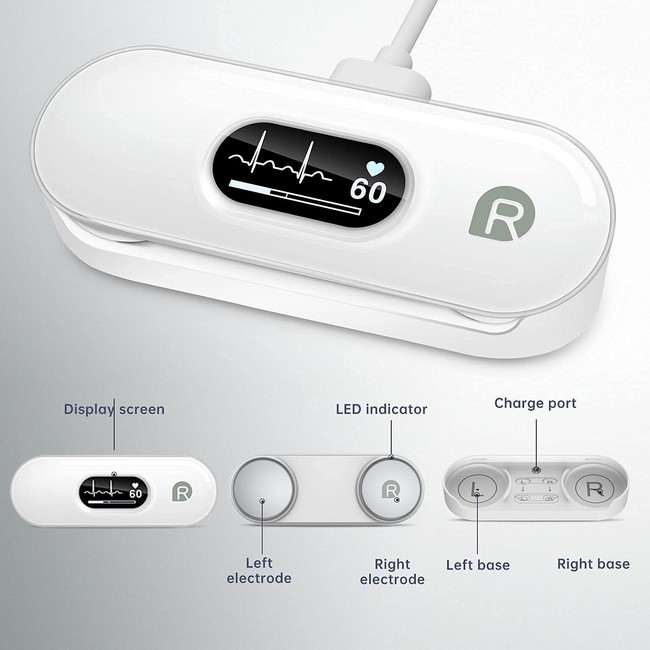

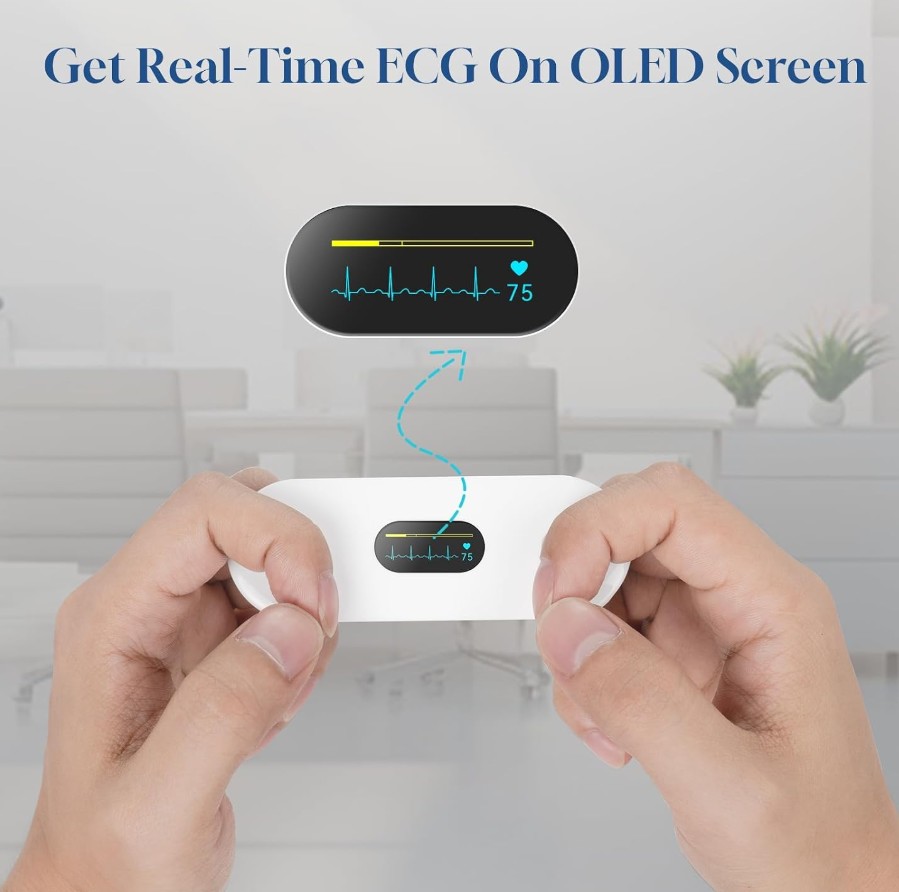

- A crystal-clear 0.96-inch OLED display shows the ECG waveform, heart rate, and results in real time, even without a smartphone
- Unlimited storage space for readings in the app, including management of multiple user profiles
- Compact and lightweight (only 26.8 g), ideal for on the go, at the office, or while traveling
- Up to 500 readings per battery charge; charges via USB-C in about 2 to 3 hours

Technical features:

Heart rate range: 30 to 250 BPM
ECG length: 30 seconds to 5 minutes
In-app memory: Unlimited
Display: 0.96 inch OLED screen
Wireless connectivity: Bluetooth 4.0
App for iOS: iOS 9.0 or higher, iPhone 4s/iPad 3 or higher
App for Android: Android 5.0 or higher, with Bluetooth 4.0 BLE
Size: 92×32×8.2 mm (main device)
Weight: 26.8 g (main device)
Charging time: 2 -3 hours
Connection: USB-C connection
Battery life: >500 tests
Device's own memory: 10 sessions if the ECG is less than 1 minute long; 4 sessions if the ECG is 5 minutes long


Scope of delivery:

- 1 × CheckMe DuoEK-S ECG Monitor
- USB charging cable
- User manual / Quick Start Guide
- Free access to the ViHealth app (download separately from the App Store or Google Play)

Note: The results of the ECG report are for reference only in the daily monitoring of heart health, they cannot replace the medical diagnosis results and cannot be used for clinical diagnosis and treatment.
