Description

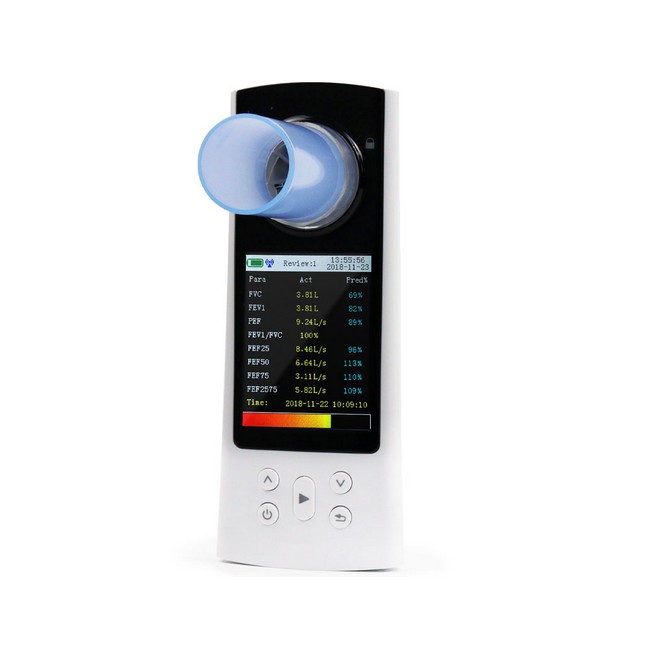

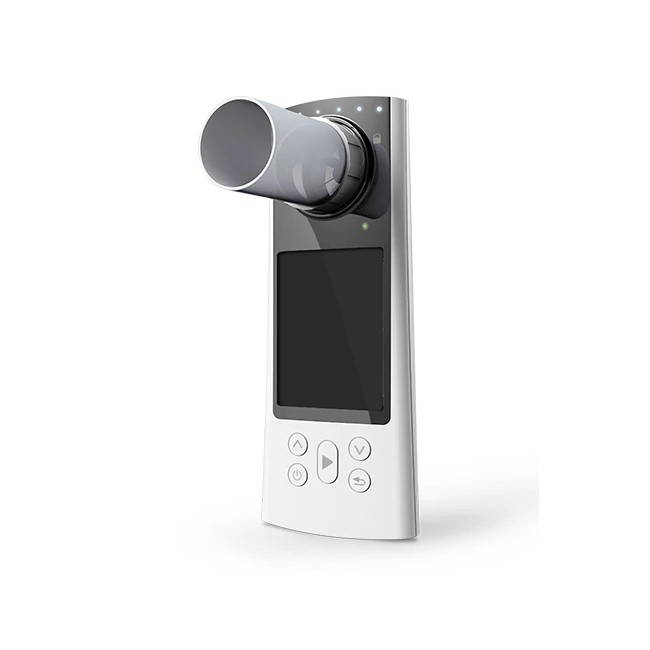

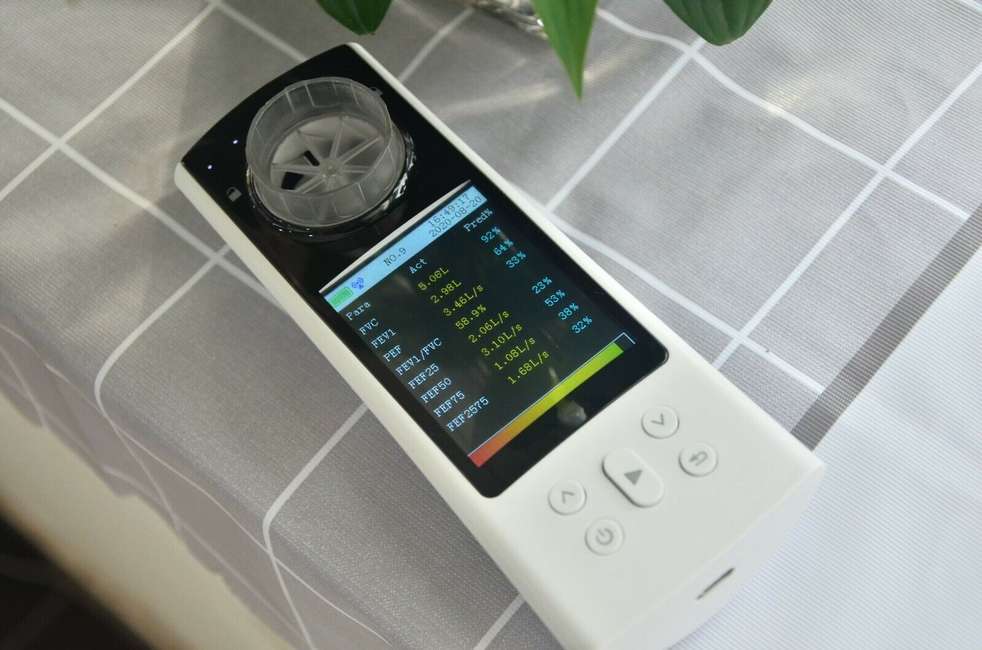

Contec SP80B Spirometer

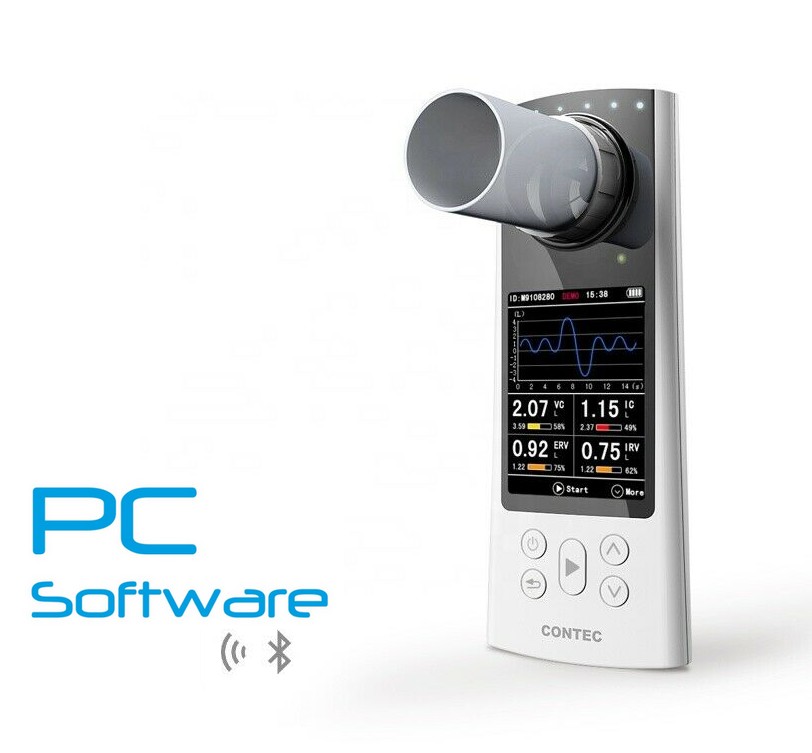

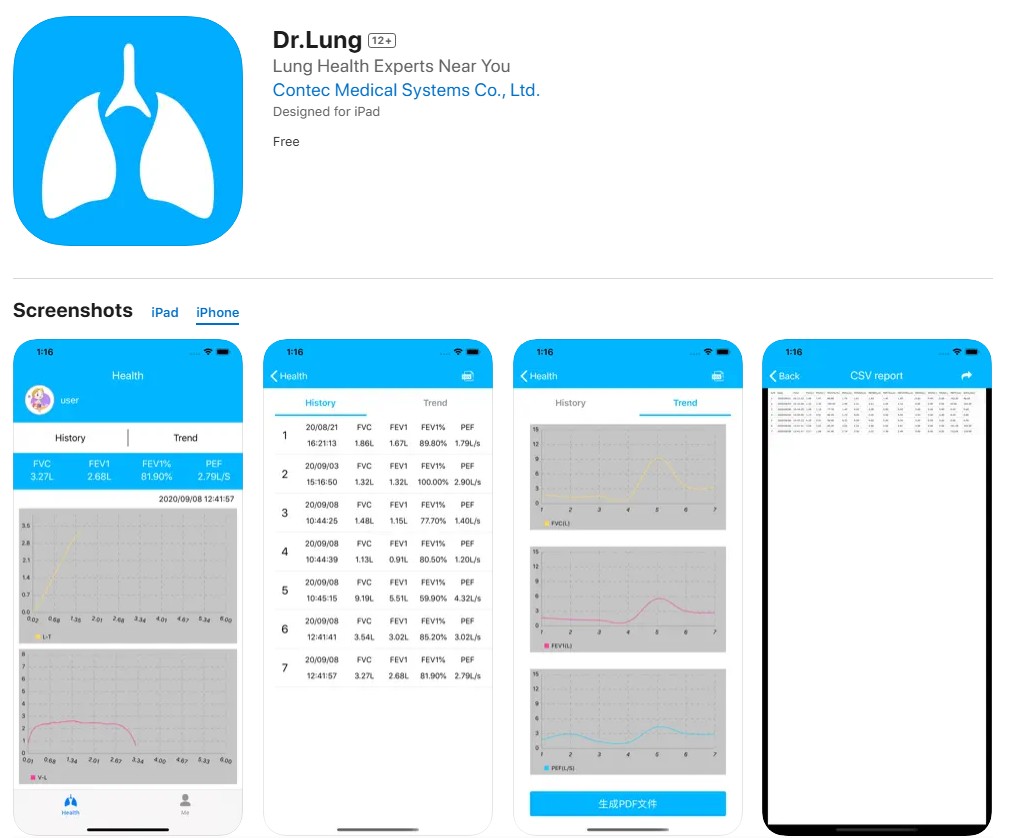

The Contec SP80B Spirometer is a hand-held equipment for checking lung conditions, it adopts the infrared mode for measuring relative items, and is applicable for family or routine test. The Contec SP80B having Bluetooth and USB-Connection and can connect with a free avaiable App "Dr. Lung" on AppStore and App "PrisU" on GooglePlay Store . Further it comes with an PC-Software / Evaluation Software (Windows only)
Features:

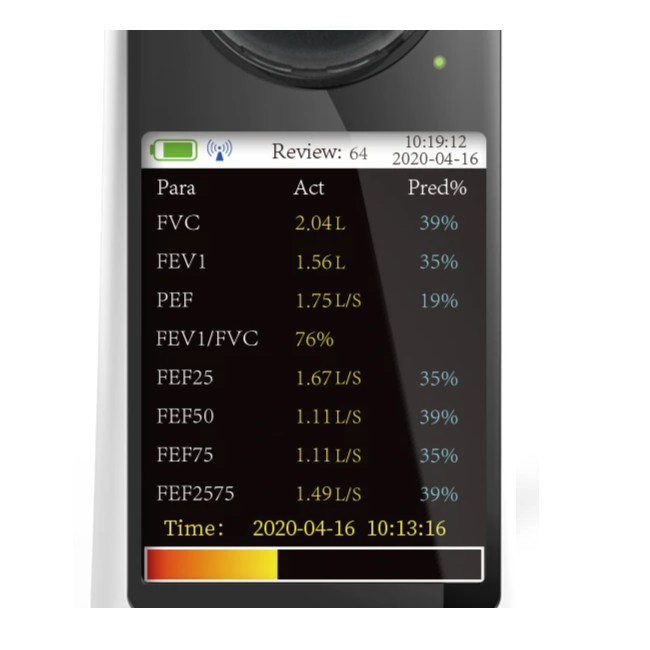

- Parameters including FVC, FEV1, FEV1/FVC and PEF can be measured
Technical Specification:
- Display mode: 2.8'' LCD
- Display resolution: 240*320 pixel
- Volume range: 0~10 L
- Volume accuracy: ±3 % or ± 0.05 L(whichever is greater)
- Flow range: 0 L/s~16 L/s
- Flow accuracy: ±5 % or ±0.2 L /s(whichever is greater)
- Working current: 200 mA
- Power supply: rechargeable lithium battery
Delivery:
- 1 x Contec SP80B spirometer
- 2 mouthpieces
- 1 Flash-Drive with PC-Software (Windows only)
- 1 user manual in English
The Contec SP80B Spirometer is a hand-held equipment for checking lung conditions, it adopts the infrared mode for measuring relative items, and is applicable for family or routine test. The Contec SP80B having Bluetooth and USB-Connection and can connect with a free avaiable App "Dr. Lung" on AppStore and App "PrisU" on GooglePlay Store . Further it comes with an PC-Software / Evaluation Software (Windows only)
Features:
- Parameters including FVC, FEV1, FEV1/FVC and PEF can be measured
- personnel information (including height, age, sex, etc.) can be set

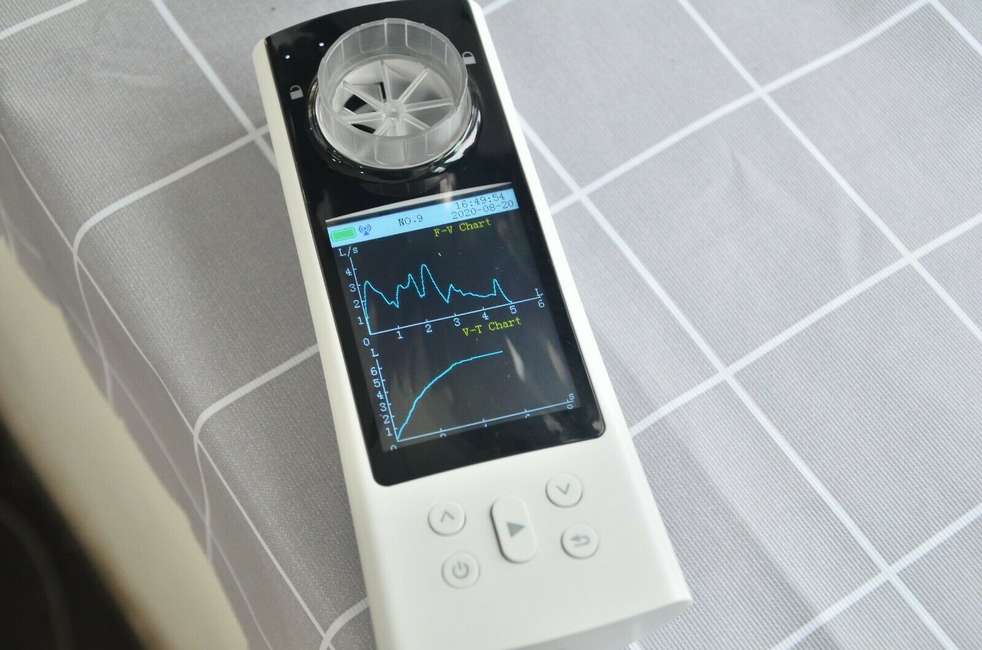

- Flow-volume chart, volume-time chart display
- data can be stored, deleted, uploaded and reviewed
- Trend chart display
- Health state indication
- Calibration function
- Over - limit prompt function for volume and flow
- Indicate expiration within 6 seconds by indicators
- Start measuring by one-button
- Report, data output as PDF
- The data can be transmitted by Bluetooth or USB cable
- Report, data output as PDF
- The data can be transmitted by Bluetooth or USB cable
- Real-time clock can be set and displayed
Technical Specification:
- Display mode: 2.8'' LCD
- Display resolution: 240*320 pixel
- Volume range: 0~10 L
- Volume accuracy: ±3 % or ± 0.05 L(whichever is greater)
- Flow range: 0 L/s~16 L/s
- Flow accuracy: ±5 % or ±0.2 L /s(whichever is greater)
- Working current: 200 mA
- Power supply: rechargeable lithium battery
- Dimension: 160 mm (L) × 65 mm (W )× 45 mm (H)
- Weight: 190 g
- 1 x Contec SP80B spirometer
- 2 mouthpieces
- 1 Flash-Drive with PC-Software (Windows only)
- 1 user manual in English
