Description

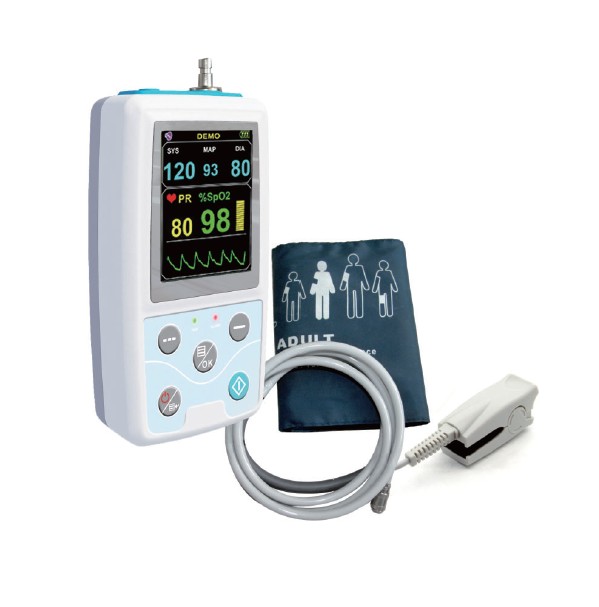

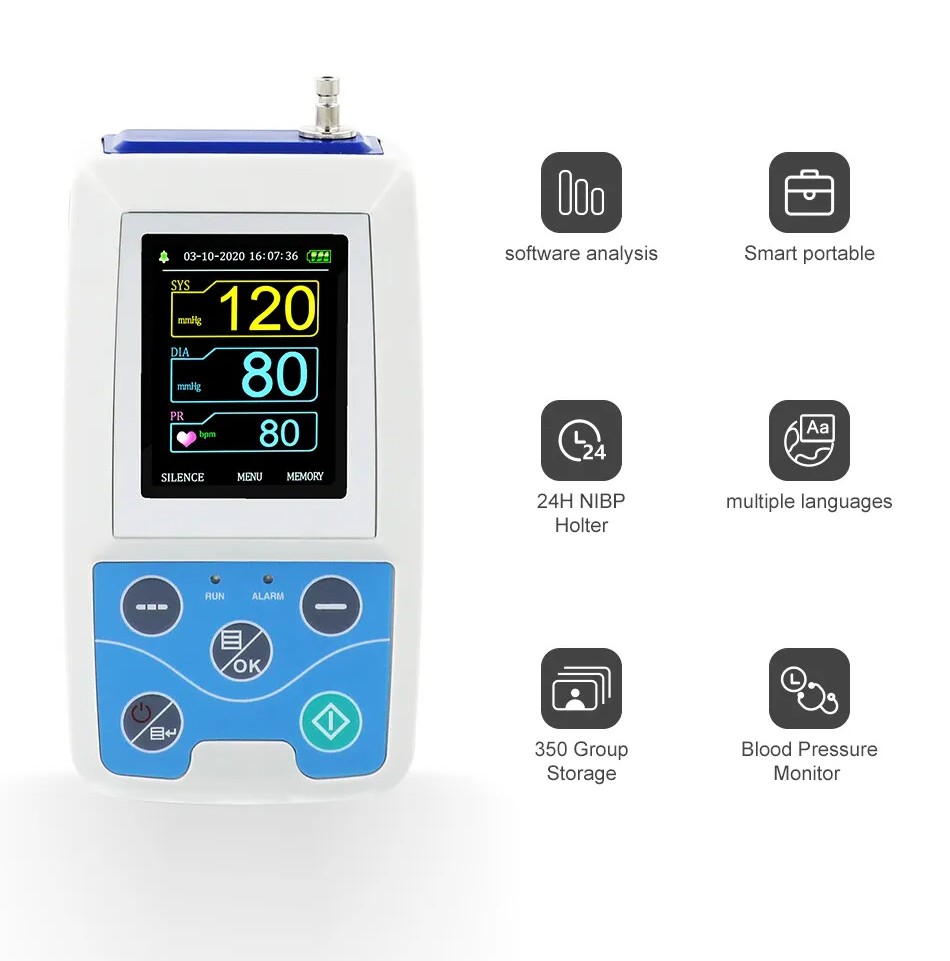

The Contec PM50 is a multifunctional patient monitor that can monitor blood pressure and blood oxygenation (SpO2) at the same time. The device enables long-term monitoring of dynamic blood pressure and oxygen saturation with a finger sensor. The manufacturer sees its use and application in hospitals, clinics and other medical facilities.

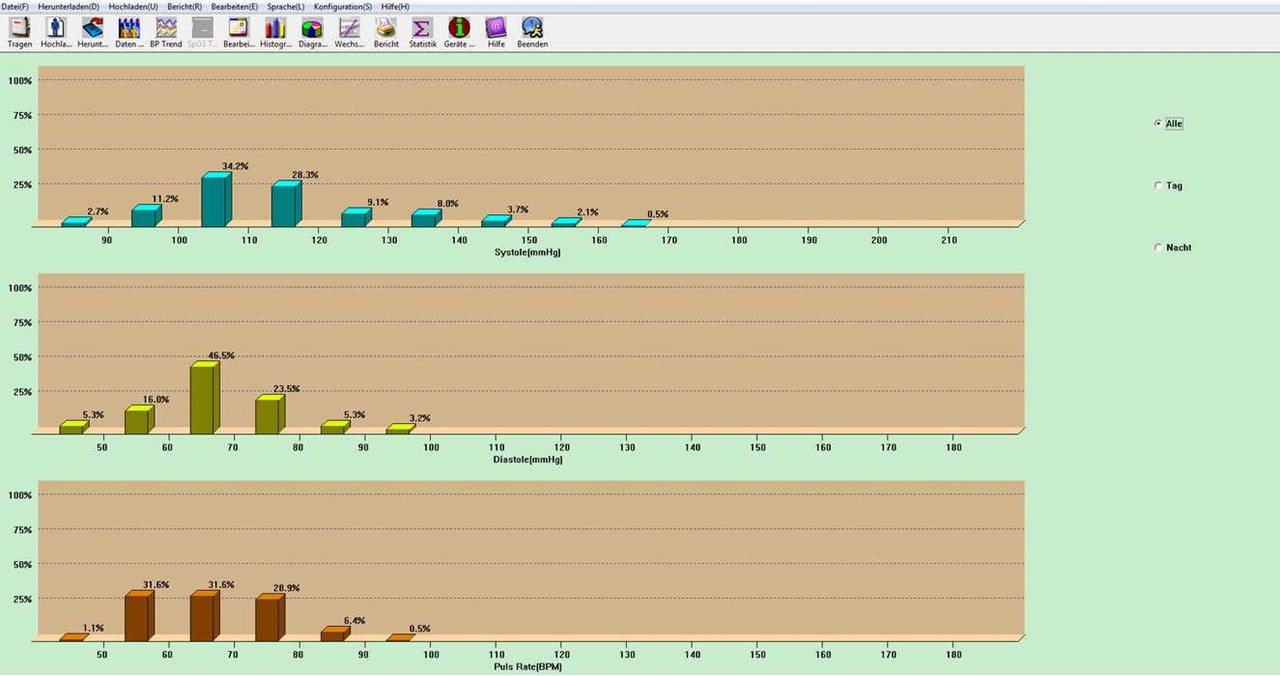

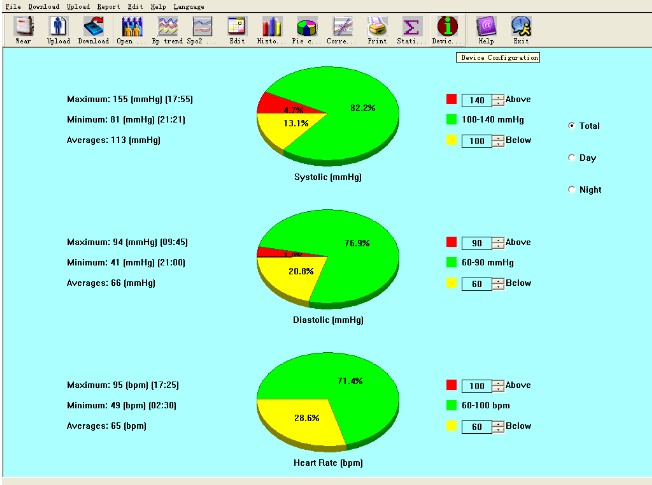

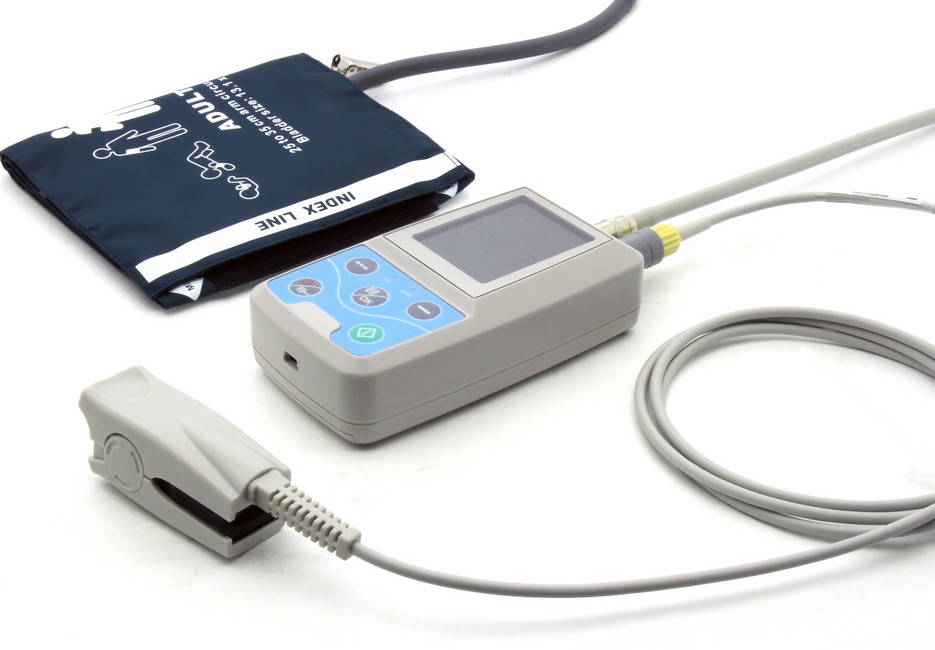

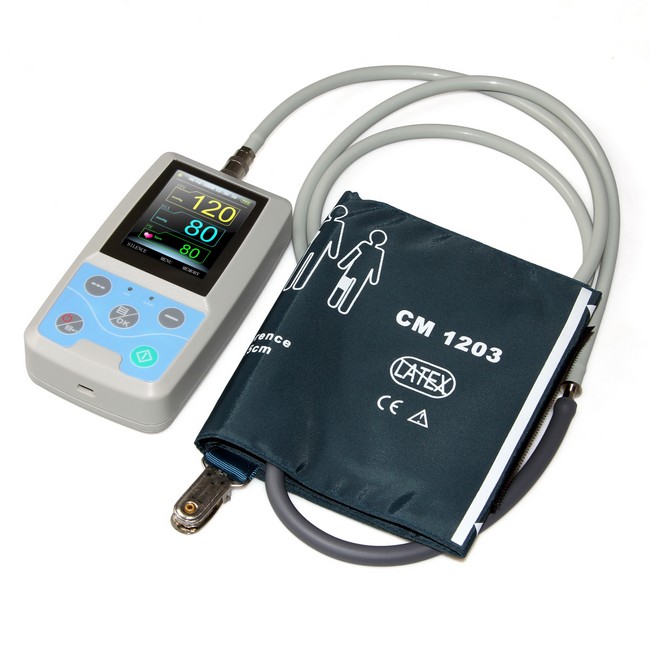

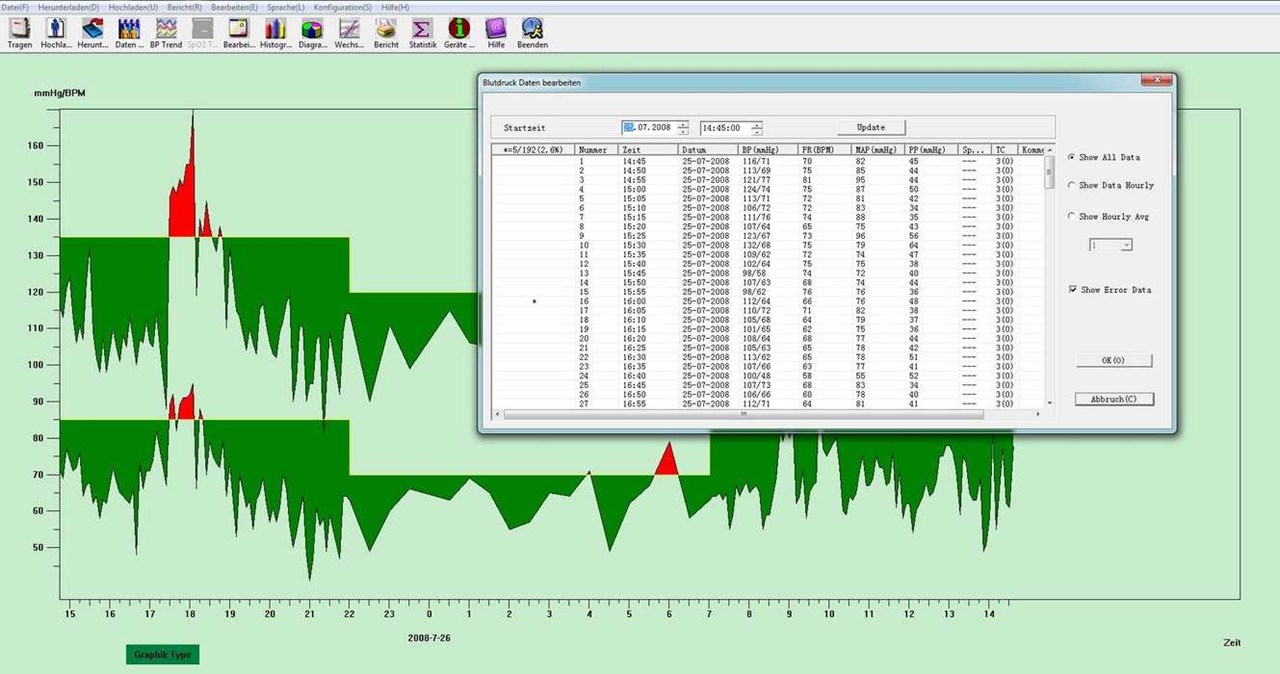

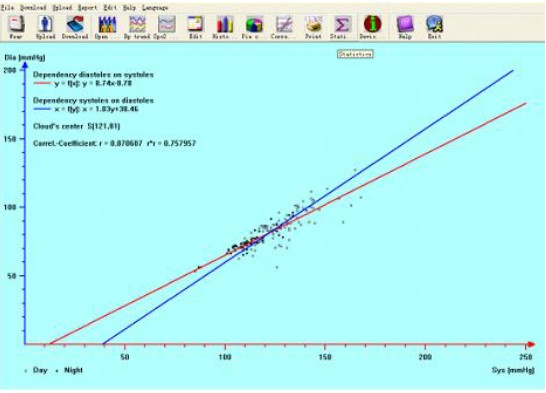

Various user types can be set on the device, from babies to children and adults. There is also an alarm function that indicates whether a specified limit of the systolic or diastolic blood pressure has been exceeded or fallen short of, or an incorrect measurement. The Contec PM-50 can save more than 600 measurements. The stored measured values can be evaluated on the PC using the supplied software (download). The PC software can be used to check data, analyze measurement results, display trends, print reports and perform other functions. The device comes with an upper arm cuff in size M (model 1203) in the size of 25 - 35 cm, as well as an SpO2 sensor for the finger.
Important parameters such as patient name, ID, time & date, time interval: day & night time, alarm if limit values are exceeded, etc. limit values, etc. are conveniently set via the corresponding PC software and transferred or uploaded to the Contec ABPM 50 before the measurement uploaded.
Technical specifications:
Automatic Measurement Interval: 5.10.15.20.30.45.60.90.120 minutes
Resolution: 1mmHg
Accuracy: ±3mmHg
Increasing pressure mode: force pump increases pressure automatically
Reducing pressure mode: self-motion ladder reducing pressure mode
Alarm parameter: SYS / MAP / DIA
SPO2:
- Measuring range: 0%~100% (Resolution:1%)
-Accuracy: 70-100%, ±2%, below 70% unspecified
-Error in Weak Filling Condition:
-SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
- Resistance to surrounding light:
- The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Pulse Rate:
-Measuring range: 0bpm~250bpm
-Resolution:1bpm
-Accuracy: ±2 bpm or ±2% (select larger)

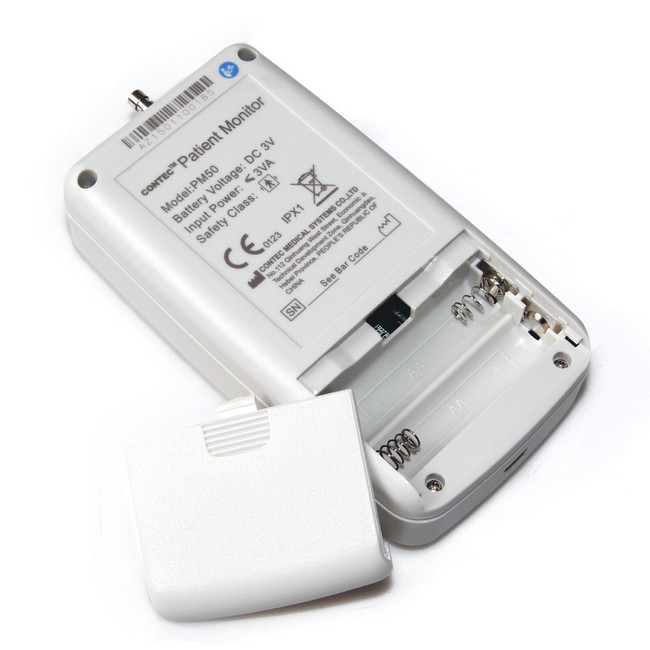

Power: DC 3V (Two "AA",1.5V Alkali Battery)
Product safety type:Type BF application part (Internally powered,defibrillator protected)
Dimension: 128*69*36 mm (No including Packing)
Weight: <350g (Including Batteries)

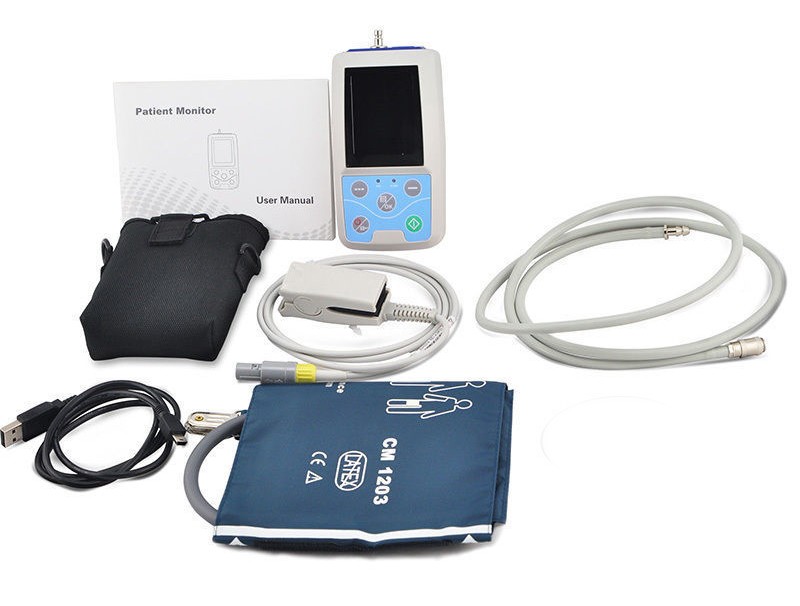

Delivery:
- Long-term patient monitor Contec PM50
- 1 cuff between 25-35 cm

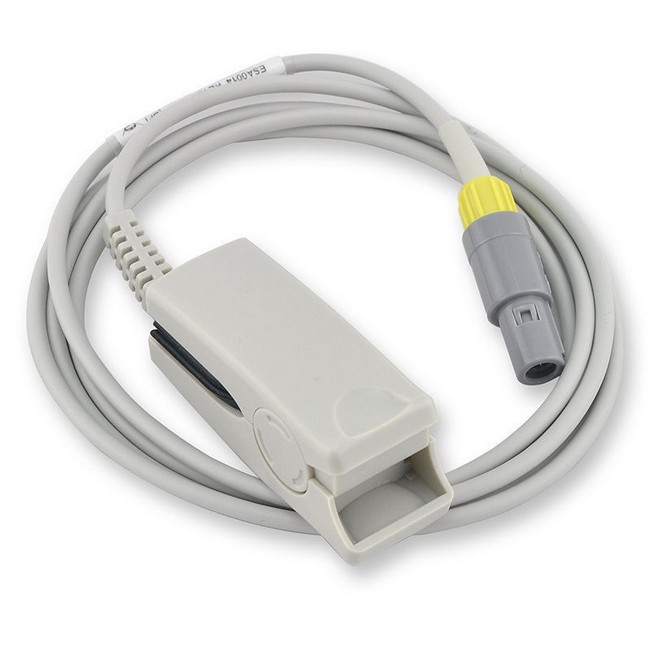

- 1 SpO2 finger sensor

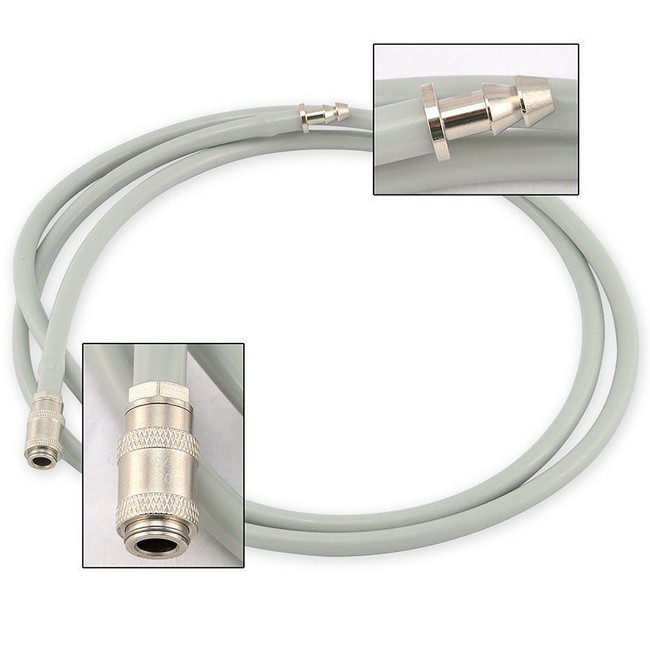

- Connection hose between device and cuff
- USB connection cable
- Software-Download for WIN 98 / NT / Vista / Win 7-11

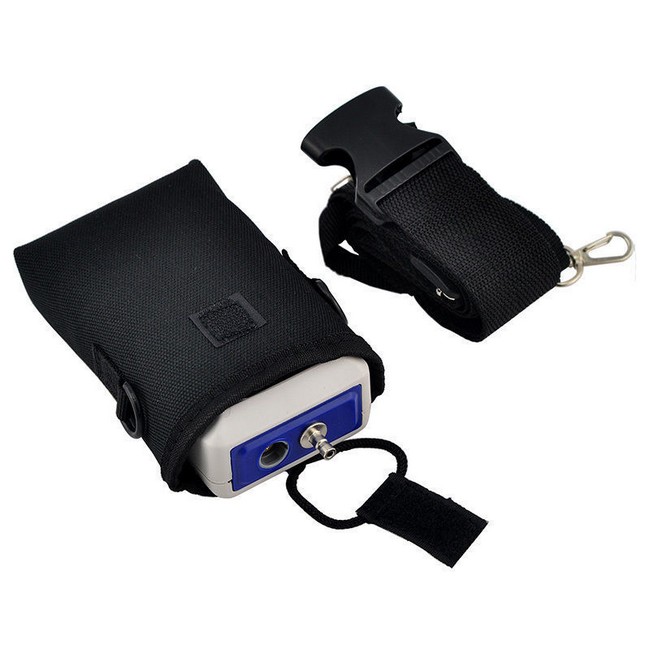

- Carry bag
- Instruction manual (English)
User Manual
User Manual Patient Monitor Contec PM50 (Englisch)
